Valves
AV501
- AV501 is used for wide range of materials by having diaphragm separated wetted part from drive unit and needle valve which seals tightly
- Applicable material: Epoxy, Filler containing epoxy, Silicon and other resins
Specification
| Valve Structure | Needle |
|---|---|
| Minimum Dispensing Volume | 0.01mL |
| Flow Rate (KV value) |
4L/min. |
| Applicable Viscosity | 1 ~ 500,000mPa･s |
| Wetted Part | SUS304, Polypropylene, Polyamide |
| Fluid Pressure | Maximum 686kPa |
| Connecting Port of Piping | IN. PT1/4 |
| Operating Cycle | 150cycles/min. |
| Operating Air Pressure | 392 ~ 686kPa |

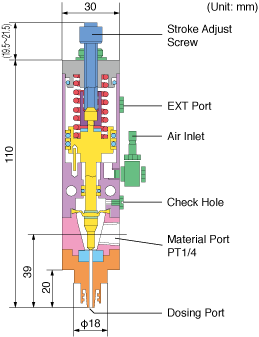

| External Dimensions | (W)30 x (D)30 x (H)110mm |
| Weight | 440g |
| Standard Accessories | AV501B-1 Diaphragm (Polyamide)=1 AV501-12 Valve Seat=1 |
As shipped, AV501B-1 Polyamide diaphragm has been installed.
Consumption Parts
| AV501-6 Needle Valve | 2 |
|---|---|
| AV501-12 Valve Seat | 5 |
| AV501B-1 Diaphragm (Polyamide) | 4 |
| AV501-13 Diaphragm (PTFE) | 2 |
| AV501-14 Seal Support | 10 |
