AV101
- Various usages from watery viscosity to high pasty viscosity material
- Valve prevent the suck-back effect from dripping and stringiness
- Applicable material: Epoxy, silicon, grease, paste, adhesive, and other materials
Specification
| Valve Structure | Spool |
|---|---|
| Minimum Dispensing Volume | 0.1mL |
| Flow Rate (KV value) |
12L/min. |
| Applicable Viscosity | 1 ~ 1,000,000mPa･s |
| Wetted Part | SUS304, SUS316 (Electroless nickel plating), PTFE |
| Fluid Pressure | Maximum 686kPa |
| Connecting Port of Piping | IN. OUT PT1/4 |
| Operating Cycle | 100cycles/min. |
| Operating Air Pressure | 343 ~ 686kPa |

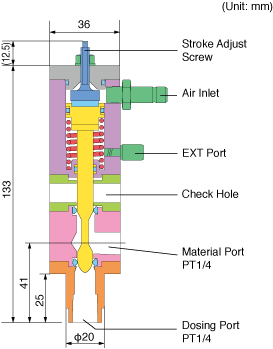

| External Dimensions | (W)36 x (D)36 x (H)133mm |
| Weight | 1.0kg |
| Standard Accessories | AV101-15E EPDM Seal=2 AV101-15S Silicon Seal=2 AV101-15V Viton Seal=2 |
As shipped, AV101-15 PTFE seal has been installed.
Needle adapter not included. (Optional)
Applicable adapters: NA-T2-M, NA-T2-P
Consumption Parts
| AV101-15 PTFE Seal | 5 |
|---|---|
| AV101-15E EPDM Seal | 5 |
| AV101-15S Silicon Seal | 5 |
| AV101-15V Viton Seal | 5 |
