FA Dispensing Machines

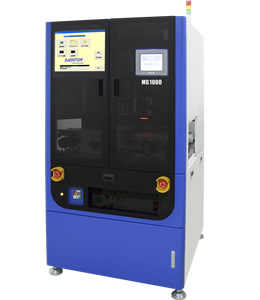

MG1000
- SMT Automatic In Line Dispenser
- Applicable to Medium-sized PCB (330 x 250mm)
- Applicable to Large-sized PCB (510 x 460mm) : Option
- Applicable various kinds of dispenser, for example, air operated dispenser, mechanical dispenser and more
Applications
Under-filling
Dispense paste
Specification
| Applicable Board Size | MAX. (W)330 x (D)250 ～ MIN. (W)80 x (D)50mm |
|---|---|
| Driving System | AC servo motor, Ball screw drive |
| Method of Work Positioning | A lift-up and fixed-side clamp |
| Transfer System | Round-belt conveyor |
| Delivery Direction | from left to right |
| Power Supply | Single-phrase 200V±5% 20A |
| External Dimensions | (W)840 x (D)885 x (H)1537mm (at pass line 900mm, excluding a signal tower and projection) |
| Weight | Approx. 400kg |
| Option | Dispense positioning calibration by means of image processing Needle-clearance calibration by means of displacement sensor |
