Barrel and Accessories

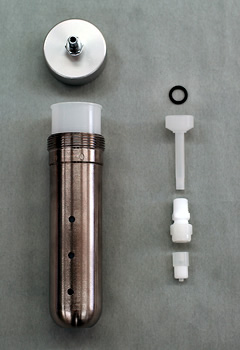

TUBEMATIC A Set (Dispensing system for the material with tube)
- Dispensing is all you need to set a tube of material into the cartridge
- No waste of material, nor bubble into the material
![TUBEMATIC A Set](../../../images/product/img_sys2_tubeset_a_comp.jpg)

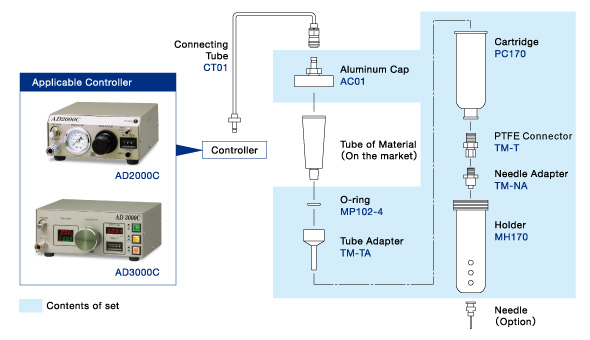

System Structure
![Structure of TUBEMATIC A Set](../../../images/product/fig_compo_tubeset_a.jpg)
Contents of set
No. | Model | Parts Name | Material | Quantity |
---|---|---|---|---|
1 | AC01 | Aluminum Cap | Aluminum | 1 |
2 | PC170 | Cartridge | Polyethylene | 2 |
3 | MH170 | Holder | Steel, Ni-coating | 1 |
4 | MP102-4 | O-ring | NBR | 2 |
5 | TM-TA | Tube Adapter | Polypropylene | 1 |
6 | TM-T | PTFE connector | PTFE | 1 |
7 | TM-NA | Needle Adapter | Polypropylene | 1 |
![TUBEMATIC A Set](../../../images/product/locate_photo_tubeset_a.jpg)
TUBEMATIC A set can be fitted in 100g tubes manufactured by Shinetsu, Three Bond, Toray etc, but it may not fit some of the products. Please contact us for the details.
Dispenser and connecting tube are not included in this set, please purchase them separately.
